DIY Headphone Hybrid Amplifier Schematic Simulation

To semplify last project I choose to exchange Current Generator by a simple Resistor.
Power dissipate is about 4W so this component, 60ohm, shoul be composed by 2x120ohm/5W resistors.

Semplified schematic

Distortion increase, third harmonic

Distiortion increase, Vin=1Vpk, Vout=5Vpk but the power on the Haedphone is 400mW near the maximun power admitted, 500mW.

At 3Vpk out:

3Vpk output

Hybrid Headphones Amplifier Project, ECL82 (6BM8) plus Power BJT for 32ohm Philips Fidelio X1 With Tube Distortion

I'm looking for an Amplifier to drive my new 32 ohm impedence Philips Fidelio X1 Headphones.

My personal project is illustrated below:

Static Voltages

I would have a tipical Tube Distortion, I choose ECL/PCL to drive a Big BJT witjout other BJT drivers, not only 2SC3281, maybe I'll use 2SC2337 I bought from GB but potential fake....
Q3 should be change by 2 diode 1N4148 with related R25 value.
The amplifier factor should be not high, here is 5, there is no overall negative feedback.
Below the Simulation of distortion with V2(Vin)=1Vpk, V(R6)(Vout)=5Vpk F=1kHz

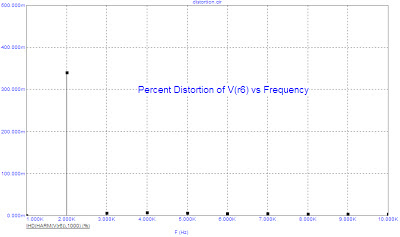

Second armoni c distortion for: V2(Vin)=1Vpk, V(R6)(Vout)=5Vpk F=1kHz

Static Currents

HeadPhones Amplifier Bandwidth

I hope I'll make it soon...
